Bulaşık Deterjanı

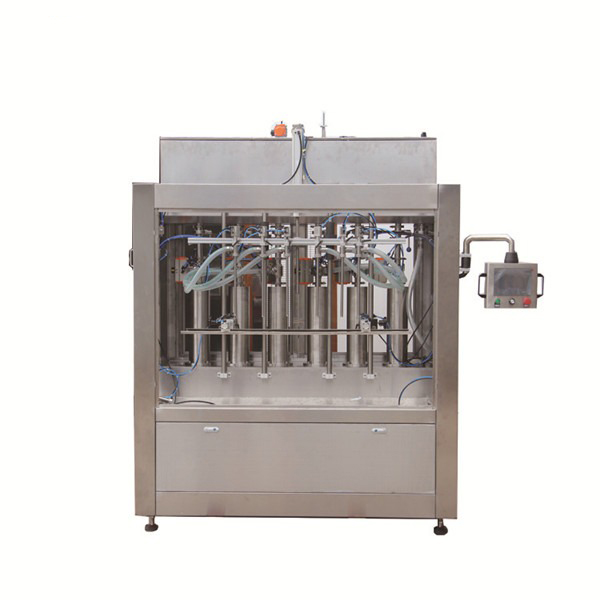

A dishwashing liquid filling machine is a type of automated equipment that is designed to fill bottles or containers with dishwashing liquid. It typically uses a series of pumps, sensors, and nozzles to accurately measure and dispense the correct amount of dishwashing liquid into each container. These machines can be used in industrial or commercial settings to increase production efficiency and accuracy.

Özellikler

---

bulaşık deterjanı dolum makinası
1. With CE Certificate,Meet the GMP
2. Material:304or316Stainless Steel
3. Pay:T/T,L/C

Açıklama

---

AB'nin CE
ISO9001
GMP gereksinimlerini karşılamak
longlife of service, low mainteinance rate

Ana işlev

---

Makine şişe sayma, doldurma ve kapatma işlemini otomatik olarak tamamlayabilen yüksek hassasiyetli dolum makinesidir.

Özellikler

1. Kompakt yapılı, iyi görünümlü, kullanımı kolay ve oldukça otomatik.

2. malzeme ile temas bileşenleri temizlemek için kolay, paslanmaz çelikten imal edilmiştir.

3. Doldurma hacmi, doğruluğunu sağlamak için film valfleri ile kontrol edilir.

4. Yüksek hızlı ve son derece hassas doldurma vanaları sızıntı yapmamasını sağlar.

5. Yüksek etkili kapak besleme sistemi ile donatılmıştır.

Dil seçeneği

Monitor language: English, Spanish, Arabic, Portuguese, Russian, Italian, French, Korean.

Başlıca özellikleri:

---

1. Linear type piston filling machine special designed for sticky liquid,such as detergent, shampoo, lotion,lubricant oil,edible oil, etc. international advanced technology, already approved by well-known companies such as Bayer. High filling accuracy, simple structure, stable working, widely application. Counting of bottles inlet, qualitative filling, bottles outlet are done automatically.

2. Not only the whole 13 filling nozzles dosage can be rough adjusted, but also each single filling nozzles dosage can finely adjusted.

3. Çeşitli parametreler için yararlı birçok parametreyi ezberleyebilir, değiştirilen tüm dozaj, dokunmatik ekranla ayarlanabilir.

4. Liquid control for normal working liquid level control, sound and light alarm device, guarantee the liquid level at normal condition; also can achieved for inlet valve/pump control.

5.  Material outlet joints all adopts quick-assembling type (clamp type), easily for clean. Sealing gaskets adopts fluorine rubber O-ring; sanitary connecting pipes.

6.  With protection case, drip gutter, main materials are made of SS304, wetted parts are made of SS316L.

Ana teknik parametre

---

madde	isim	Teknik parametre
01	Makine ebadı (L * W * H)	2200mm * 1400mm * 2800mm
02	Makina ağırlığı	1400Kg hakkında
03	Konteyner açılış iç çapı	≥φ35mm
04	Uygun konteyner	1 Litre .2 Litre
05	Konteyner yüksekliği	80-350mm
06	Güç kaynağı	AC 380V; 50HZ
07	Güç	5kW
08	Doldurma doğruluğu	≤ ±% 1
09	Hava kaynağı	0.6Mpa kararlı ve temiz basınçlı hava
11	Doldurma memelerinin sayısı	13
12	Konveyör yüksekliği	900 ± 50 mm
13	kapasite	003200 şişe / saat (test olarak su alın)
14	Şişe besleme yönünde	Soldan sağa

Hızlı Ayrıntılar

---

Tip: Dolum Makinesi
Durum: Yeni
Uygulama: Kimyasal
Ambalaj Türü: Şişeler
Ambalaj Malzemesi: Ahşap
Otomatik Sınıf: Otomatik
Tahrik Tipi: Pnömatik
Voltaj: 220 v
Güç: 3KW
Menşe Yeri: Shanghai. Çin (Anakara)
Marka Adı: NPACK
Boyut (L * G * Y): 2200 mm * 1400 mm * 2800 mm
Ağırlık: 1400
Sertifika: CE
Sağlanan Satış Sonrası Hizmet: Yurtdışı hizmet amaçlı kullanılabilir makine mühendisleri
malzeme: SS304
PLC: Panasonic
Dokunmatik ekran: Panasonic

Dishwashing liquid filling machines are specifically designed to package dishwashing liquids into various types of containers. These machines are essential for businesses in the cleaning industry who want to streamline their packaging process and increase their productivity. There are several types of dishwashing liquid filling machines available in the market, each with its unique features and benefits.

One of the most popular types of dishwashing liquid filling machines is the volumetric filler. This machine operates on the principle of displacement and uses a piston to fill the containers with the precise amount of liquid required. This type of machine is highly accurate and is suitable for packaging liquids with a constant viscosity.

Another type of dishwashing liquid filling machine is the gravity filler. This machine works on the principle of gravity and uses a funnel to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the funnel. This type of machine is ideal for packaging low viscosity liquids and is very cost-effective.

The third type of dishwashing liquid filling machine is the overflow filler. This machine works on the principle of overflow and uses a hopper to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the hopper. This type of machine is ideal for packaging high viscosity liquids and can handle liquids with large particles.

When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require. It is also important to consider the ease of maintenance and the reliability of the machine.

In conclusion, a dishwashing liquid filling machine is a crucial investment for businesses in the cleaning industry. With the right machine, businesses can increase their productivity, improve the quality of their packaging, and save time and money. When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require.
