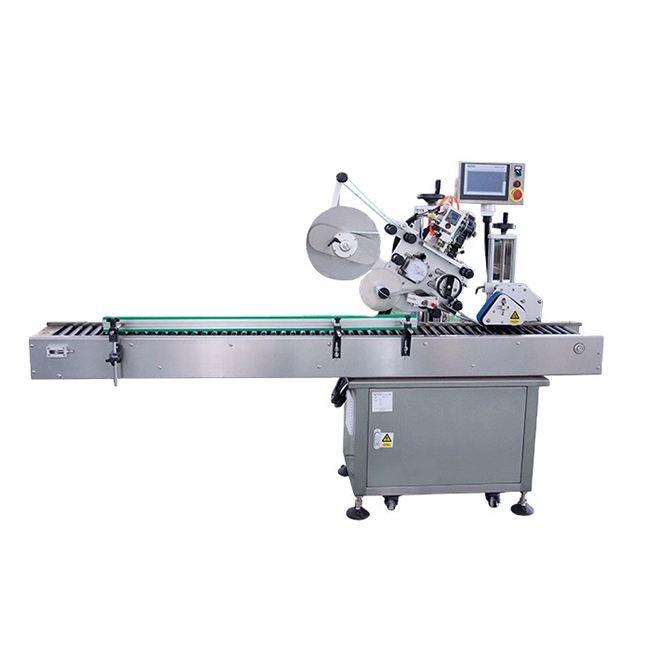

Horizontal Wrap Around Tube Labeling Machine

tüp etiketleme makinesi etrafında yatay sarma

---

1. Apply to food, pharmaceutic, daily chemical, stationery, plastic industries etc.

2. Mainly used to automatically stick adhesive label on cylinder or small conical products which is unable to be carried vertically, such as tube, cylinder bottle, water injection, conical tube etc. High labeling precision, stable work ability, neat, no wrinkle, no bubble.

3. Suit for single or similar diameter products, orbit unadjustable and Can be matched with bottle feeder, ribbon printer, date printer, etc

Teknik parametre

---

Etiketleme boyutu	(L) daha fazla 10mm (B) 110-100mm	İç çapı haddeleme	76mm
Ürün boyutu	(D) 10-16mm16-26mm 26-36mm (H) daha az 100mm	Haddeleme dış çapı	350mm
Etiketleme hassasiyeti	+ -1mm	Güç kaynağı	AC220V 50Hz 3kW
Etiketleme hızı	40-150 (adet / dakika) (malzeme ve etiket boyutu ile ilgilidir)	Makine boyutu	(L) 2000 x (W) 1700 * (H) 1500mm

Hızlı Ayrıntılar

---

Tip: Etiketleme Makinesi
Durum: Yeni
Uygulama: içecek, kimyasal, emtia, gıda, makine ve donanım, tıbbi
Ambalaj Türü: Şişeler
Ambalaj Malzemesi: Kağıt, Plastik
Otomatik Sınıf: Otomatik
Tahrik Tipi: Elektrik ve Hava
Voltaj: 110V / 220V
Güç: 1.5KW
Menşe Yeri: Çin (Anakara)
Marka Adı: NPACK
Boyut (L x W x H): 2100 * 700 * 1000mm
Ağırlık: 300kg
Belgelendirme: gmp
Sağlanan Satış Sonrası Hizmet: Yurtdışı hizmet amaçlı kullanılabilir makine mühendisleri
Ürün adı: tüp etiketleme makinesi etrafında yatay sarma
İşlev: tüp Etiketleme
Malzeme: S304 Paslanmaz Çelik
Etiketleme hızı: 60-150 Şişe / dak
Kullanım: yatay etiketleme
Avantaj: Profesyonel Destek Ekibi

A horizontal wrap around tube labeling machine is a machine that is designed to wrap labels around cylindrical tubes with high efficiency and accuracy. This type of machine is ideal for labeling a wide range of products, including cosmetic tubes, toothpaste tubes, food containers, and other cylindrical products.

The machine is designed with a horizontal orientation, which enables it to handle large volumes of products in a compact and efficient manner. The labeling process starts with the product being fed into the machine, which then positions it in the correct position for labeling. The label is then applied to the product as it is rotating, ensuring a smooth and even application.

The machine is equipped with advanced features such as a touch screen control panel, which makes it easy to operate and adjust the settings. The control panel also provides real-time monitoring of the labeling process, enabling the operator to make any necessary adjustments to ensure consistent and accurate labeling.

The machine is also equipped with a high-speed labeling system, which can apply labels at speeds of up to 200 tubes per minute. This high speed capability ensures that the machine can keep up with the demands of a fast-paced production environment.

In addition, the machine is equipped with a built-in quality control system, which checks the accuracy of the labeling process and alerts the operator if any problems are detected. This ensures that the product is labeled with the correct information and meets all quality standards.

The horizontal wrap around tube labeling machine is also designed to be easy to maintain, with removable and replaceable components that can be quickly and easily replaced if needed. This helps to minimize downtime and reduce the cost of maintenance.

In conclusion, a horizontal wrap around tube labeling machine is a versatile and efficient labeling solution for a wide range of products. With its advanced features, high speed capabilities, and easy maintenance, it is an ideal choice for companies looking to improve the accuracy and efficiency of their labeling process.
